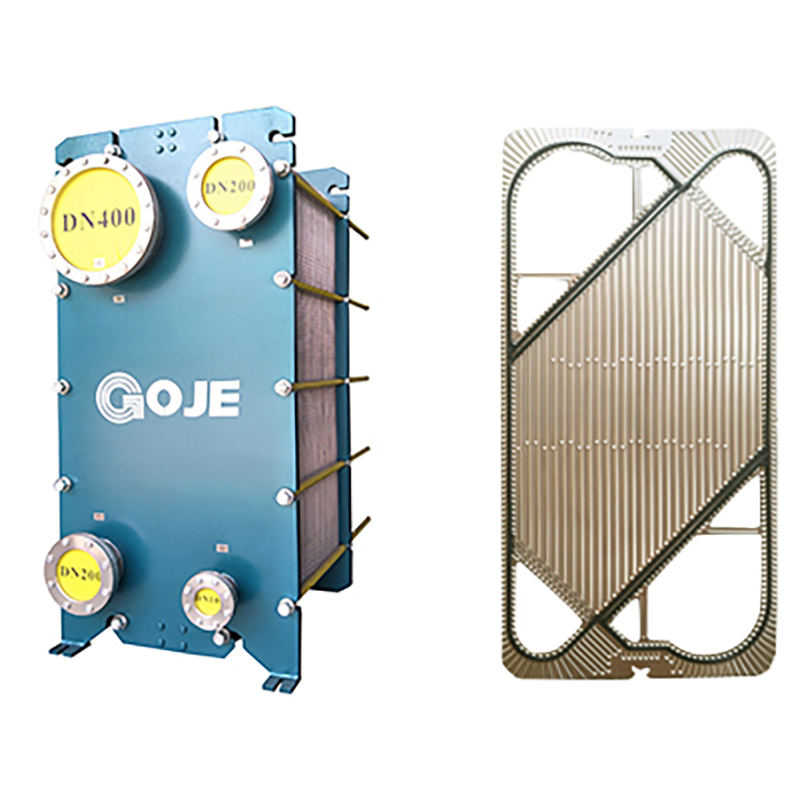

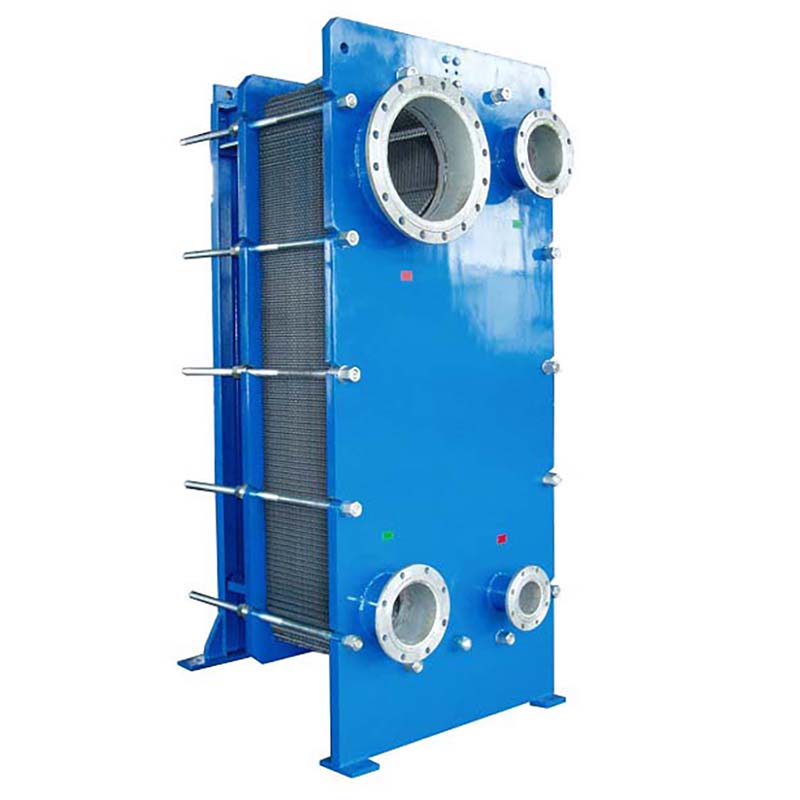

Plate condenser model

Plate heat Exchanger
Plate heat Exchanger

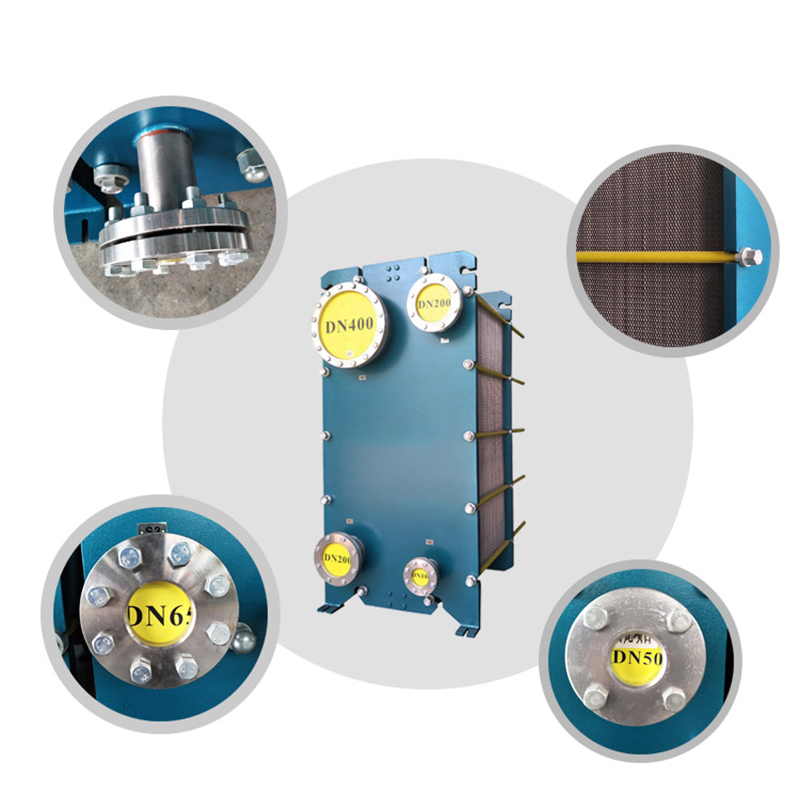

Plate condenser-03

Plate Condenser design principle

Plate condenser is developed for condensing steam based on evaporation or distillation system under vacuum conditions. The Plate condenser based on the semi-welding technology is composed of special plate pack and gasket. The cooling medium is heated in the channel with gasket and the steam condenses in the welding channel. The steam has a large inlet and a small condensate outlet.

Plate Condenser structure

Frame, plates, gaskets, tightening bolts
Assembly forms: Detachable type, semi-welded type

Plate Condenser material

Frame: Carbon steel
Plate: SS304, SS316, Titanium, SMO254, Hastelloy C276
Gasket: EPDM, NBR, HEPDM, HNBR, VITON

Plate Condenser advantages

1.Large heat transfer coefficient: range from 1500-4700W
2.Compact structure: The transfer area can reach more than 250m2.
3.Maximize vent design
4.Different channel gap sizes of media on both sides for minimizing fouling
5.Easy to operate, easy to clean, disassemble and repair

Plate Condenser Applications

Chemical, petroleum, light industry, food, pharmaceutical, machinery, heating, shipbuilding, metallurgy, mining, power, etc.
